Deburring and surface finishing machines are used for mass finishing of metal, plastic, ceramic and rubber parts. Small parts weighing few grams to parts weighing up to 25 Kg can be processed in variety of machines available from Gala wide range of products. Use of deburring and finishing machines is essential to achieve consistency and high production rates.
In addition to finishing equipment use of abrasive media and compounds is essential to achieve desired process results. Abrasive media can be of ceramic, porcelain, steel or plastic material. Compounds are used with water with concentration level of 5 to 10%. Gala offers standard and customised products to suit specific customer needs.
Complete automation of surface finishing processes is possible by using component loading system, conveyors, vibratory trolley, dosing system using PLC based control panels.
Vibratory finishing
Vibratory finishing machine consists of a bowl lined with polyurethane material which is mounted on springs and uses vibratory motor and unbalanced weights to achieve gyroscopic motion to the workload. Vibratory finishing is used to achieve Deburring, Edge radiusing, Degreasing, Descaling, Polishing, Mirror Finishing and Smoothening of variety of components.
This is the most common method used for deburring and polishing of components which includes sheet metal, machined, cast, forged and moulded parts. A wide range of components of Automotive, Aerospace, Defence and Consumer products can be processed using vibratory finishing machine. We offer following Vibratory machines based on shape of the working bowl.

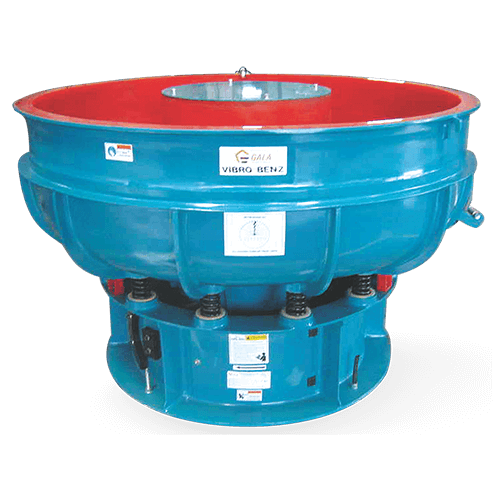

Round
Round Vibratory finishing machines are the most common type of machines used in manufacturing industry for a wide range of components.
This machine can be used for small parts like rivets and screws to bigger parts like turbine blades.
We offer machines from 70 Litre to 1500 litre capacity.
Standard and Auto Separation models are available.
VB STD. SERIES ( without Separation)
| Model No | Total Volume ( Liters) | Outer Diamter(mm) | Chamber width(mm) | Power ( HPX RPM) |
| VB-70 | 70 | 838 | 200 | 0.5 X 1440 |
| VB-130 | 130 | 1016 | 230 | 1 X 1440 |
| VB-225 | 225 | 1170 | 270 | 1.5 X 1440 |
| VB-335 | 335 | 1330 | 355 | 2 X 1440 |
| VB-455 | 457 | 1412 | 420 | 2.5 X 1440 |
| VB-600 | 600 | 1622 | 510 | 5 X 960 |
| VB-800 | 800 | 1622 | 510 | 7.5 X 960 |
| VB-1020 | 1020 | 1880 | 525 | 10 X 1440 |
| VB-1500 | 1500 | 2136 | 610 | 10 X 1440 |
| PU Lining thickness upto VB 600 10 mm and for above VB 600 models 15 mm | ||||
