Deburring and Finishing

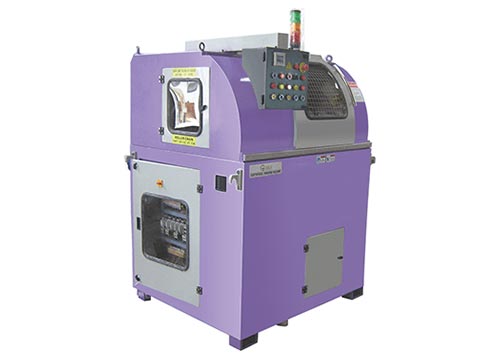

Centrifugal Barrel Finishing
- This is more aggressive form of finishing as compared to Vibratory finishing. This machine uses 3 or 4 barrels mounted on turret assembly. The high rotation speed of turret results in high centrifugal forces which results in faster process. These machines are often used with variable frequency drives to adjust the rotational speed as per process need.
- The surface finish achieved with this process is more uniform and even.
- These machines are used in various industry sectors such as jewellery, bearing, textile, compressor, automotive, aerospace and many more.
- Centrifugal barrel finishing machine process is capable of achieving high Ra values up to 0.06 microns for parts like textile rings, reed valves, bearing rollers and many more.
| CFM | Model No | Total Volume | Barrels ( Nos) | Motor Power (HP) | Barrel PU Line Thickness (mm) |
|---|---|---|---|---|---|
| CFM | CFM 20 | 20 | 4 | 2 | 5 |
| CFM | CFM 40 | 40 | 3 | 5 | 8 |
| CFM | CFM 60 | 60 | 3 | 5 | 8 |
| CFM | CFM 120 | 120 | 4 | 10 | 10 |
| CFM | CFM 160 | 160 | 4 | 15 | 10 |
| CFM | CFM 200 | 200 | 4 | 15 | 12 |
| CFM | CFM 300 | 300 | 3 | 25 | 15 |
| Dimensions are for reference only, subject to change | |||||
