Deburring and Finishing
Vibratory Finishing
Vibratory finishing machine consists of a bowl lined with polyurethane material which is mounted on springs and uses vibratory motor and unbalanced weights to achieve gyroscopic motion to the workload. Vibratory finishing is used to achieve Deburring, Edge radiusing , Degreasing, Descaling, Polishing, Mirror Finishing and Smoothening of variety of components.
This is the most common method used for deburring and polishing of components which includes sheet metal, machined, cast, forged and moulded parts. A wide range of components of Automotive, Aerospace, Defence and Consumer products can be processed using vibratory finishing machine. We offer following Vibratory machines based on shape of the working bowl.

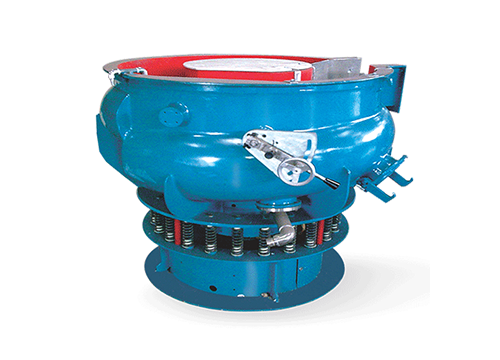

Round
- Round Vibratory finishing machines are the most common type of machines used in manufacturing industry for a wide range of components.
- This machine can be used for small parts like rivets and screws to bigger parts like turbine blades.
- We offer machines from 70 Litre to 1500 litre capacity.
- Standard and Auto Separation models are available.
VB STD. SERIES ( without Separation)
| Model No | Total Volume ( Liters) | Outer Diamter(mm) | Chamber width(mm) | Power ( HPX RPM) |
| VB-70 | 70 | 838 | 200 | 0.5 X 1440 |
| VB-130 | 130 | 1016 | 230 | 1 X 1440 |
| VB-225 | 225 | 1170 | 270 | 1.5 X 1440 |
| VB-335 | 335 | 1330 | 355 | 2 X 1440 |
| VB-455 | 457 | 1412 | 420 | 2.5 X 1440 |
| VB-600 | 600 | 1622 | 510 | 5 X 960 |
| VB-800 | 800 | 1622 | 510 | 7.5 X 960 |
| VB-1020 | 1020 | 1880 | 525 | 10 X 1440 |
| VB-1500 | 1500 | 2136 | 610 | 10 X 1440 |
| PU Lining thickness upto VB 600 10 mm and for above VB 600 models 15 mm | ||||
